• ultrasonic sleeve sewing machine for surgical gown sleeve sealing

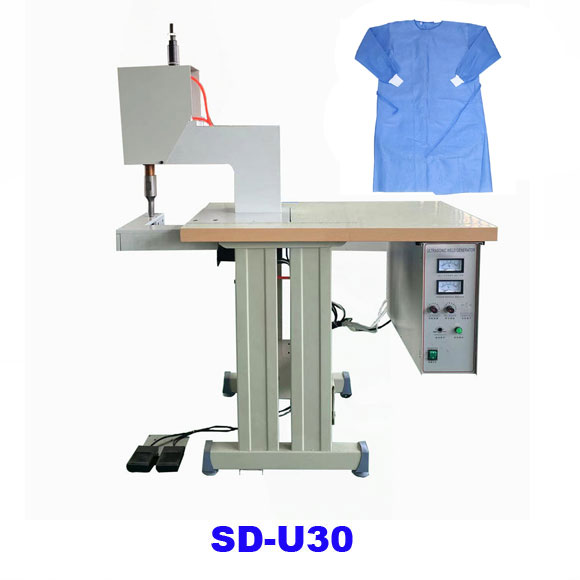

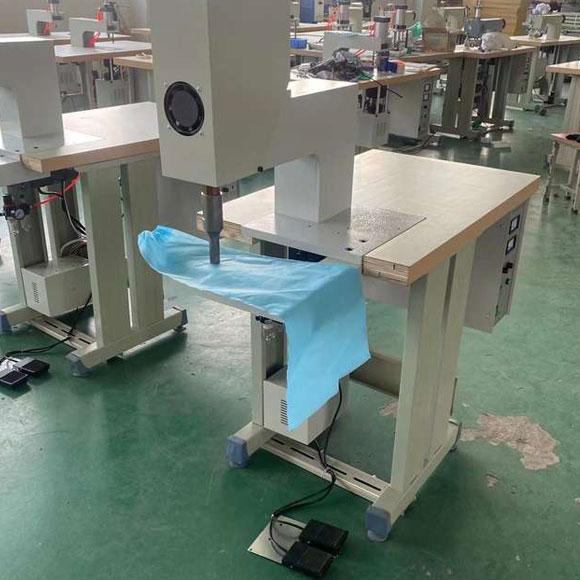

Name:ultrasonic sleeve sewing machine for surgical gown sleeve sealing
Model:SD-U30
Voltage:AC 220V,50Hz
Power:2500W
Max sewing width:20mm
Speed:0-20m/min
Frequency:20KHz
Net weight:90KG
Dimension(LWH):1200x600x1200mm
Inquiry

Product Description


Basic components

1. New type PC intellectual ultrasonic generator;

2. 20KHz ultrasonic transducer unit;

3. Bottom mould fixed suspension structure;

4. dual motors speed adjustment system(Single motor for option);

5. Pneumatic roller lifting system(Manual type for option);

Characteristics

1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;

2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets the welding requirements of different materials and thicknesses;

3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;

4. Variety of roller patterns, other roller designs available according to customer requirements;

5. Four times faster than sewing machines, minimal operator training required.

Functions

1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting, so smooth, no rough edges;

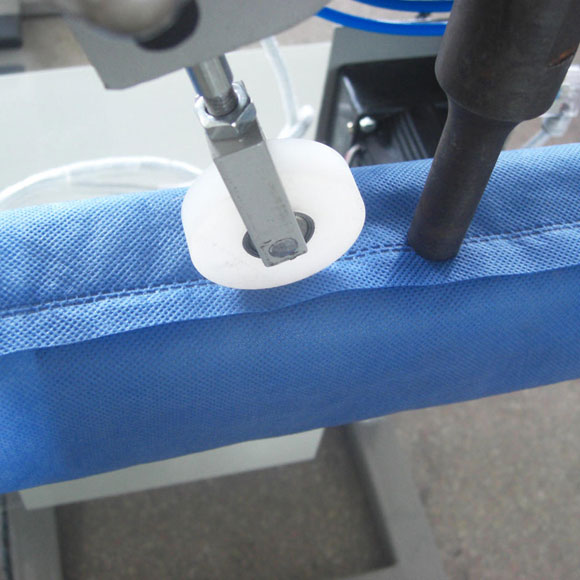

2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;

3. Hole making: Cut out the various patterns of holes, and treatment of side melting;

4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;

5. Forming: Simultaneous cutting, sealing and embossing to make production in one time.

ultrasonic sewing machine function

Suitable material

All kinds of artificial leather and fabric, non woven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyester, ABC, PC, PU, PE, PP, PS, etc.

Application

Applied to lace clothing, ribbon, decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent,

raincoat, disposable operating coat and hat, disposable mask, non-woven fabric cloth and so on
